WindBine TM Vertical FIn Strips - Part #FSTRIPS

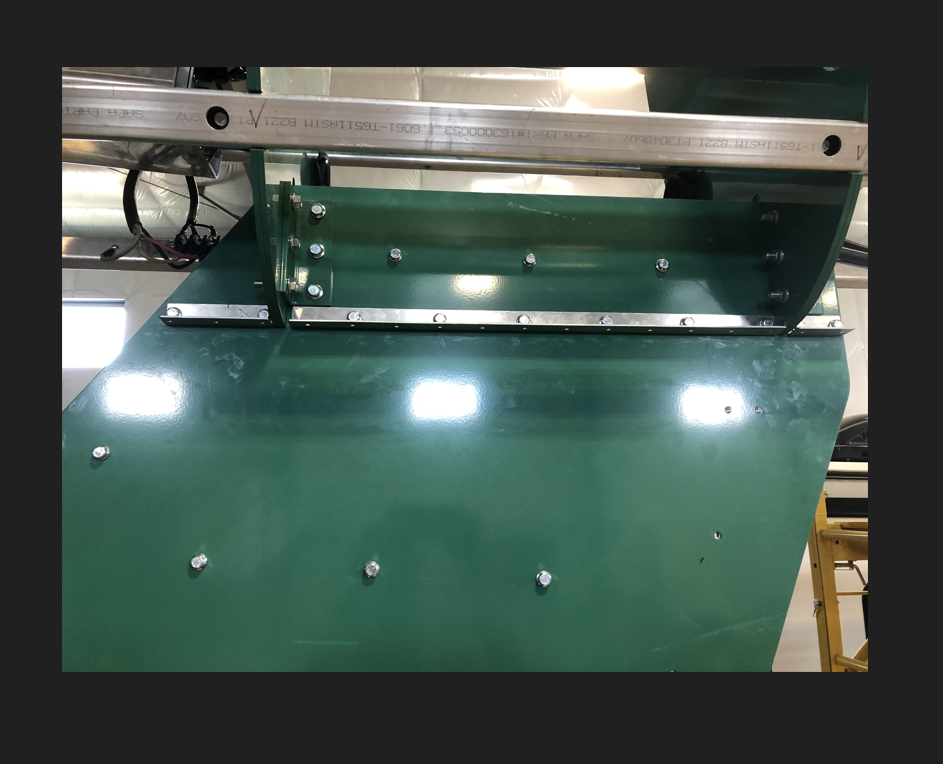

This WindBine TM Part includes the drawing and electronic file for the Vertical Fin Strips that the Inventor used to attach some of the leeward Fuselage Skins that meet the Vertical Fins!

Purchase full drawing that includes the electronic file for making the part!

WindBine TM
Vertical Fin Strip
Part # FSTRIPS
Material: 11 gauge 5052 Aluminum
Finish: None
Thickness: 0.091"
Weight:  0.34 lbs
Pieces required: 5 Strips in total
Scale: 1/4
Dim's in inches
Aug 14/20
'Easy-View' Drawing

Slingshot WEST Inc.
Angus Tocher
