WindBine TM Wing Panel Inner A2 - Part #WPIA2

This WindBine TM Part includes the drawing and electronic file for the Wing Panel Inner A2 for punch and press brake that the Inventor used to build the Accelerator Wings of his WindBine TM! These light weight aluminum wing panels both greatly accelerate the wind through the 'props', reducing the size and cost of the prop blades, reducing maintenance cost and resulting in a very strong 'prop' that can operate in strong winds!  The Wing Panels also auto-direct the WindBine TM accurately into the wind naturally, without any servo-motors that fight the wind rather than work with the wind!

Purchase full drawing that includes the electronic file for making the part!

WindBine TM

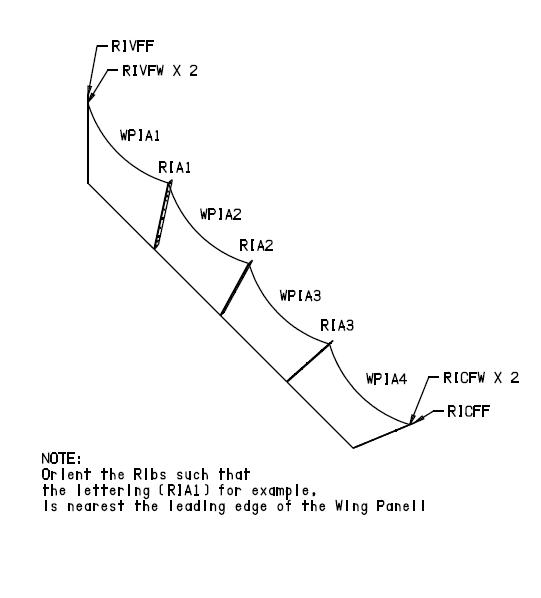

WB IV Wing Panel Inner A2
Part # WPIA2
Material: 5052 sheet aluminum
          18 gauge
Finish: Powder Coat both sides SAGE
Thickness: 0.0403"
Weight:  approx 4.7 lbs
Pieces required: 4
Scale: 1/12
Dim's in inches
June 2/17
'Easy-View Drawing

Slingshot WEST Inc.
Angus Tocher
